Product Details:
|
| Type: | Thermal Imaging Scopes | Resolutions: | 400×300; 640x480 |
|---|---|---|---|
| NETD: | ≤30mK | Frame Rate: | 50 Hz |
| WIFI: | 2.4G | Focus: | Manual |
| Digital Zoom: | 1x ~ 4x; 1x ~ 8x | Weight: | ≤990g (without Eye Mask And Battery) |

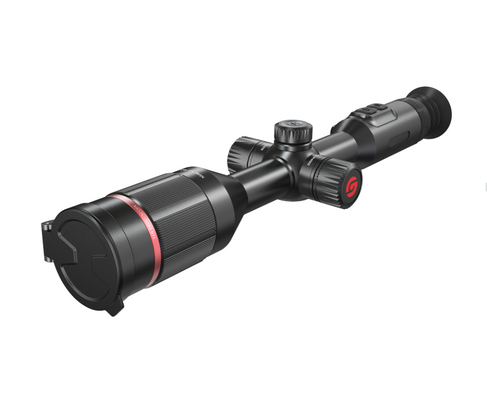

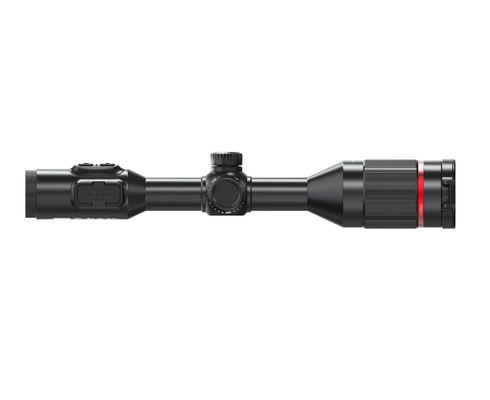

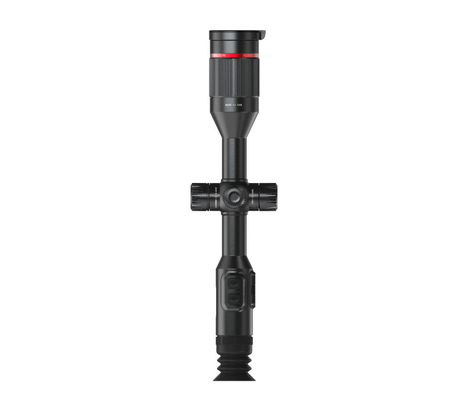

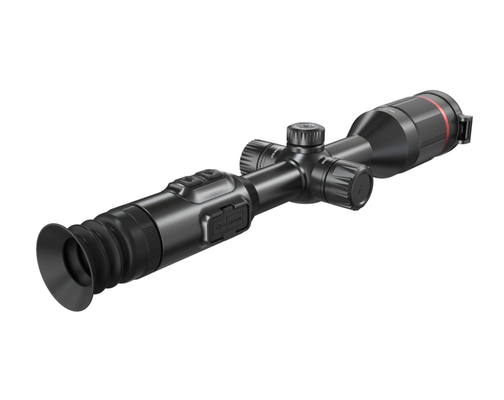

Long Range Infrared Thermal Imaging Scope TU Gen2 HD Night Vision Monocular For Hunting
Parameter:
| Product model | TU431 | TU451 | TU631 | TU651 |
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector,8 to 14μm | |||
| Resolution | 400×300,12 μm | 640×480,12μm | ||
| NETD | ≤30mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
| Focal length | 35 mm,F1.0 | 50 mm,F1.0 | 35mm,F1.0 | 50 mm,F1.0 |
| Field of angle | 7.8°×5.9° | 5.5°×4.1° | 12.5°×9.4° | 8.8°×6.6° |
| Optical zoom | 2.65x | 3.78x | 1.65x | 2.36x |
| Digital zoom | 1x～4x | 1x～8x | ||
| Focus | Manual | |||
| Display | ||||
| Display type | 0.39”AMOLED | |||
| Resolutior | 1440×1080 | |||
| Eyepiece | Exit pupil distance≥48 mm;Diopter±4;Zoom:14x | |||
| Video output | Digital video | |||
| Range Performance | ||||
| Detection range | 1000 m | 1400 m | 2000 m | |
| Functions | ||||
| Scene modes | Enhanced,Highlight and Natural | |||
| Color palettes | White Hot,Black Hot,adjustable Red Hot,Green Hot,Iron Red,Blue Hot | |||
| Recording function | Photo/Video | |||
| WIFI | 2.4G | |||
| Supported Application | TargetIR | |||
| Firmware OTA | Upgrade device firmware via app connection | |||
| Others | PIP,Hot spot tracking,Rough ranging | |||
| Power | ||||
| Battery type | Single 18650 battery (built-in)and customized battery (external) | |||
| Operating time | ≥12 hours | |||
| Interface | ||||
| USB | USB Type-C | |||
| Video interface | micro HDMI | |||
| Mechanical interface | Picatinny | |||
| Tube diameter | Standard 30 mm | |||
| System | ||||
| Language settings | English /Russian /German /French/Italian /Spanish /Japanese /Korean /Polish | |||
| Memory capacity | 128GB | |||
| Environmental | ||||
| Operating temperature | -30℃ to 50℃ | |||
| Storage temperature | -40℃ to 70℃ | |||
| Humidity | 10 %to 95%non-condensing | |||
| Shock | 800 G at 1 ms half sine pulse(as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Certification | FCC,CE,RoHS,EAC,un38.3 | |||
| Physical | ||||
| Weight | ≤990g (without eye mask and battery) | |||
| Size | ≤377×107×69 mm(without eye mask) | |||
| Standard | Device,lens cap,eye mask,5V2A adapter (US,Britain,Australia and Europe),Desktop charger,customized battery×2,Extended clip×2.USB Type-C cable,micro HDMI cable,Quick start guide |
|||
| Optional | Bluetooth remote control,Customized battery,Extended bracket | |||
Features:
△ HD AMOLED display for higher image quality and reduced visual fatigue
△ The PureIR algorithm for high-sensitivity thermal images
△ Super long battery life of up to 12 hours
△ OTA firmware upgrade by connecting to the APP
△ Photo and video recording to keep the best moments
△ IP67 encapsulation, resistant to 800G shock
△ User-friendly improved left-hand operation experience and optimized opening direction of USB cover
Applications:
△ Night hunting
△ Law enforcement
△ Search & Rescue
△ Personal security
